Testing and verification

1984 Calculator

The 1984 calculator uses the ISO 7029 : 1984 formulae with the modifications stipulated at the foot of Tables 2 and 3 of CLB 2000 to produce comparative AAHL levels.

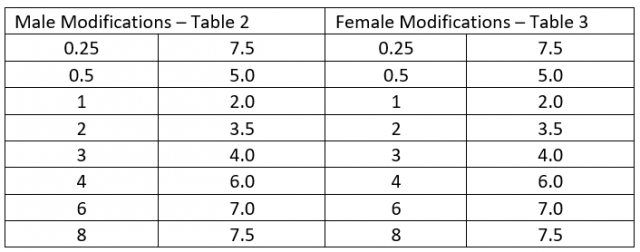

The modifications are

Specifically, the modifications above were used for the value H_md,18 in the first equation of ISO 7029 : 1984 for each frequency.  The first equation generates the median value thus –

H_md,Y = α(Y – 18 years)² + H_md,18

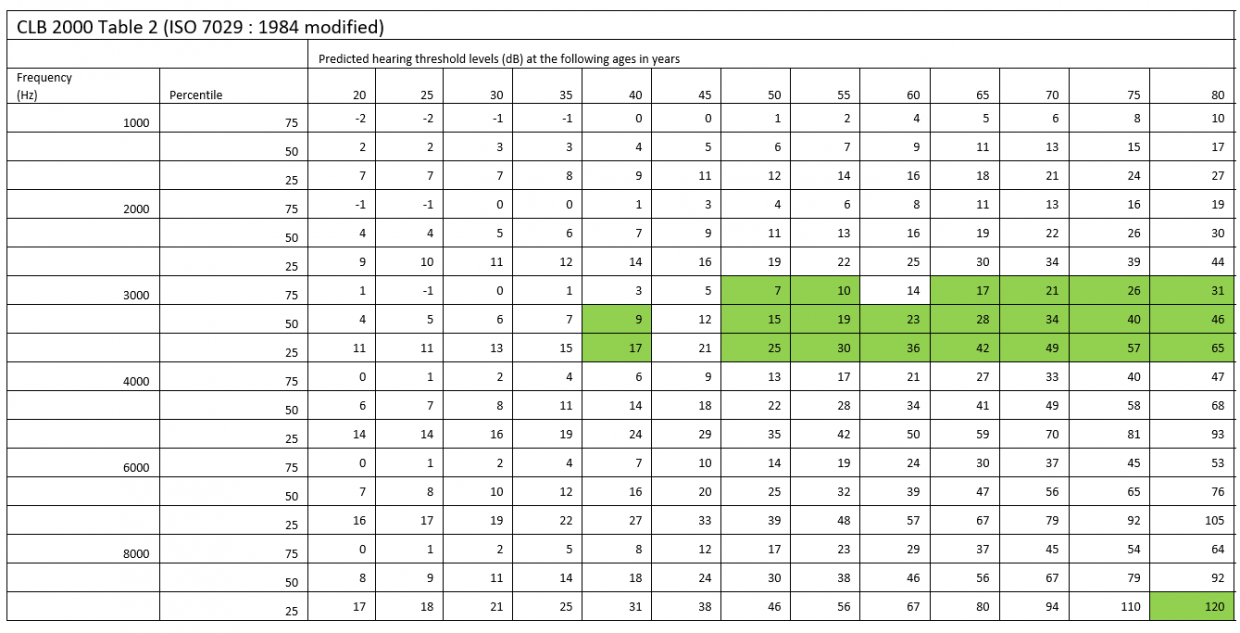

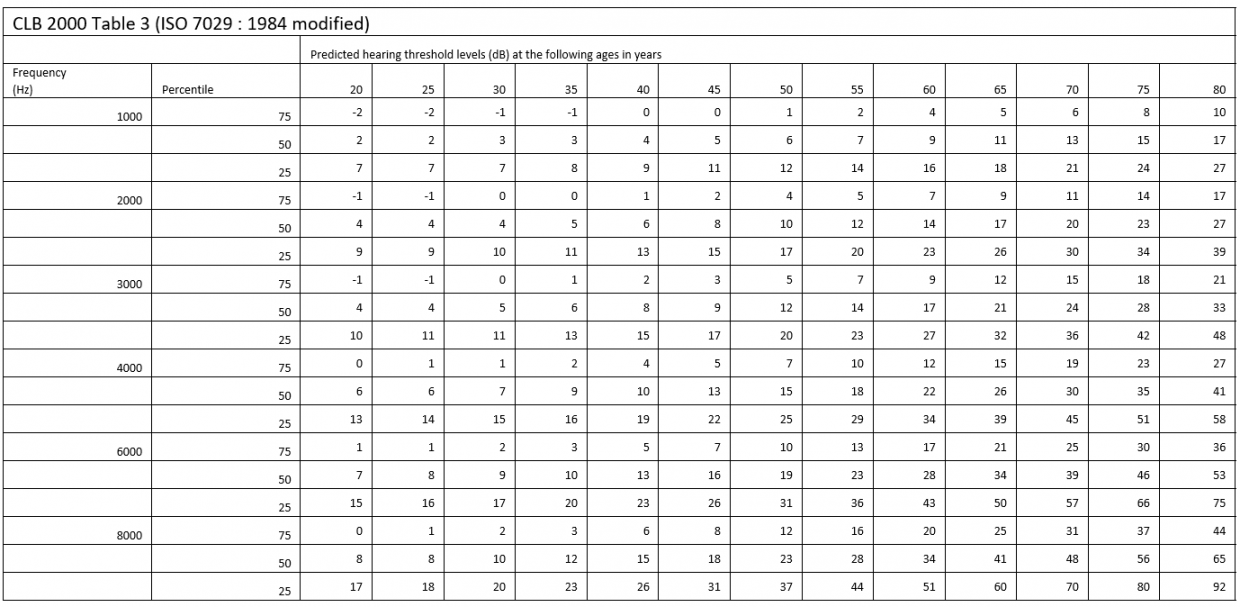

The calculator test results for the Male and the Female are provided below together with the values in Tables 2 and 3 of CLB 2000.

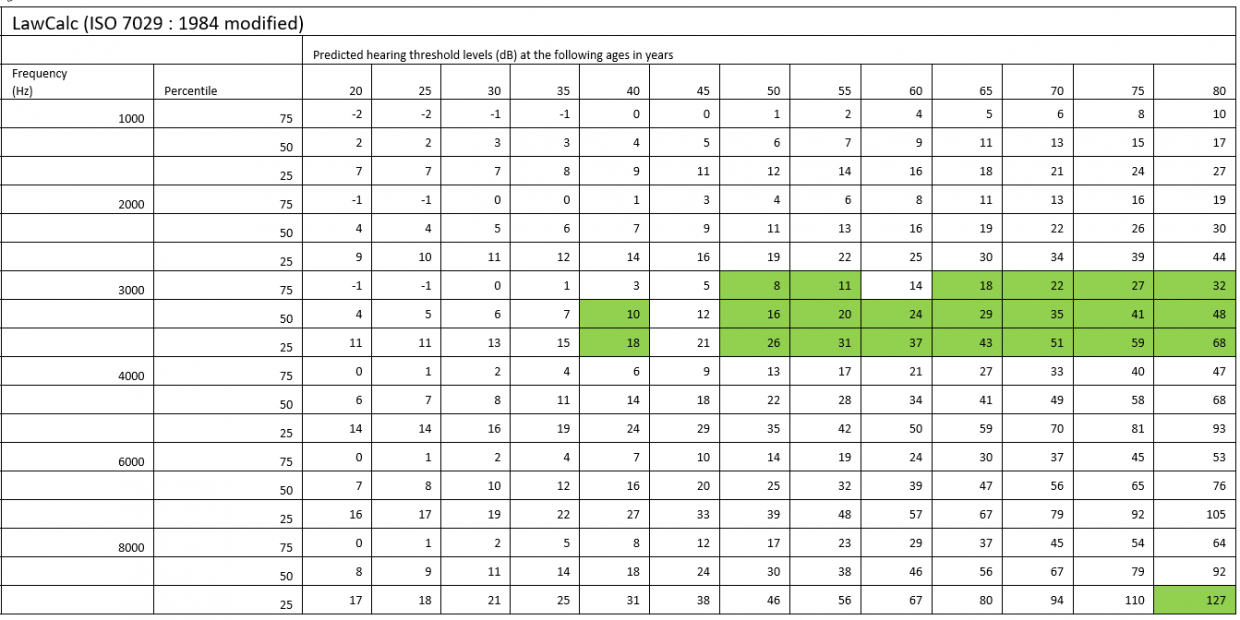

Male

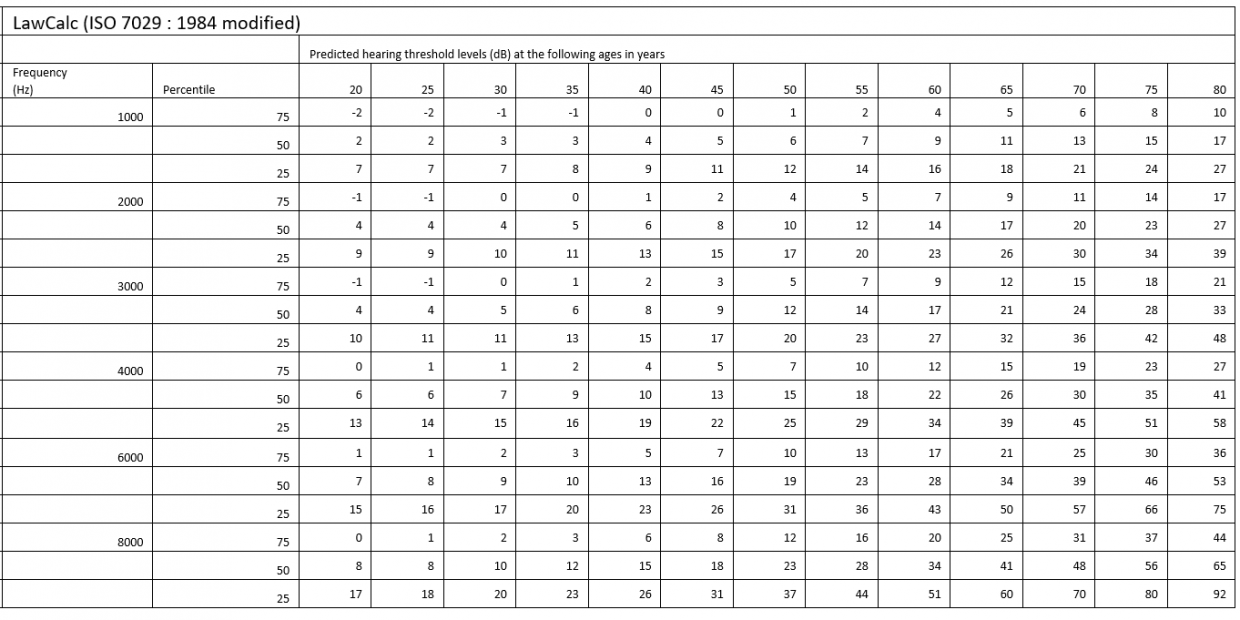

Female

For Males at 3kHz, some calculator results differ from those provided in Table 2 CLB 2000.  All other results are consistent with Tables 2 and 3 with the exception of the 25^th percentile at 8kHz for an 80 year old Male (*see below.)

Initial concern was that the calculator had an error within it at 3kHz in the male side only.  That possibility has been excluded; the formulae have been carefully checked and function as required by ISO 7029 : 1984 with the modification required by CLB 2000.

CLB 2000 inconsistencies

There are inconsistencies in CLB 2000.  One of those is the Worked Example at the end of CLB 2000.  It does not utilise the AAHL figures provided in Table 2 consistently.

The example considers a male aged 57 and that AAHL values for a male aged 55 should be used for the calculations.  The example records that the right ear is better than the left and that the AAHL values are drawn from Table 2 at the 50^th and 75^th percentiles respectively.

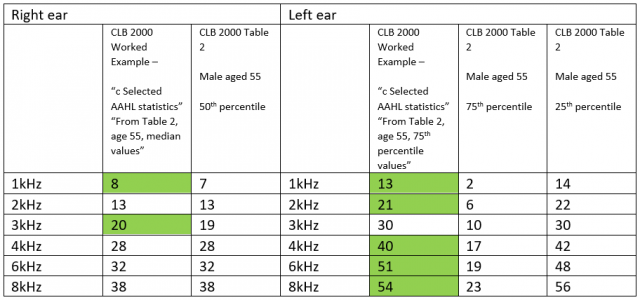

There are differences between the AAHL values in Table 2 and the values used in the Worked Example which for reference have been tabulated below –

The CLB authors clearly intended the annotation for the AAHL comparator values in the left ear to have read “25^th percentile values” rather than the 75^th as it appears in the Paper.  However, even accounting for this, the Table 2 values are not consistently utilised in the Worked Example in print. (7 out of 12 values are inconsistent.)

Conclusion

The precise ISO 7029 : 1984 formulae and the CLB 2000 prescribed modification of 4.0 modification at 3kHz in the calculator have been retained in the calculator.

At 3kHz only the results may slightly differ from Table 2.  However, it was considered that retaining the exact method and the prescribed modification in Lawcalc maintained consistency of approach and calculation.

*The difference at the 25^th percentile at 8kHz for an 80 year old Male is because Tables 2 and 3 truncate values in excess of 120dB to 120dB.

2017 Calculator

The 2017 calculator uses the ISO 7029 : 2017 formulae as stipulated by the standard without any modification.

(It is not possible to modify the baseline of ISO 7029 : 2017 as the authors of CLB 2000 did with ISO 7029 : 1984.  The percentile spread of ISO 7029 : 2017 does not depend upon the baseline.)

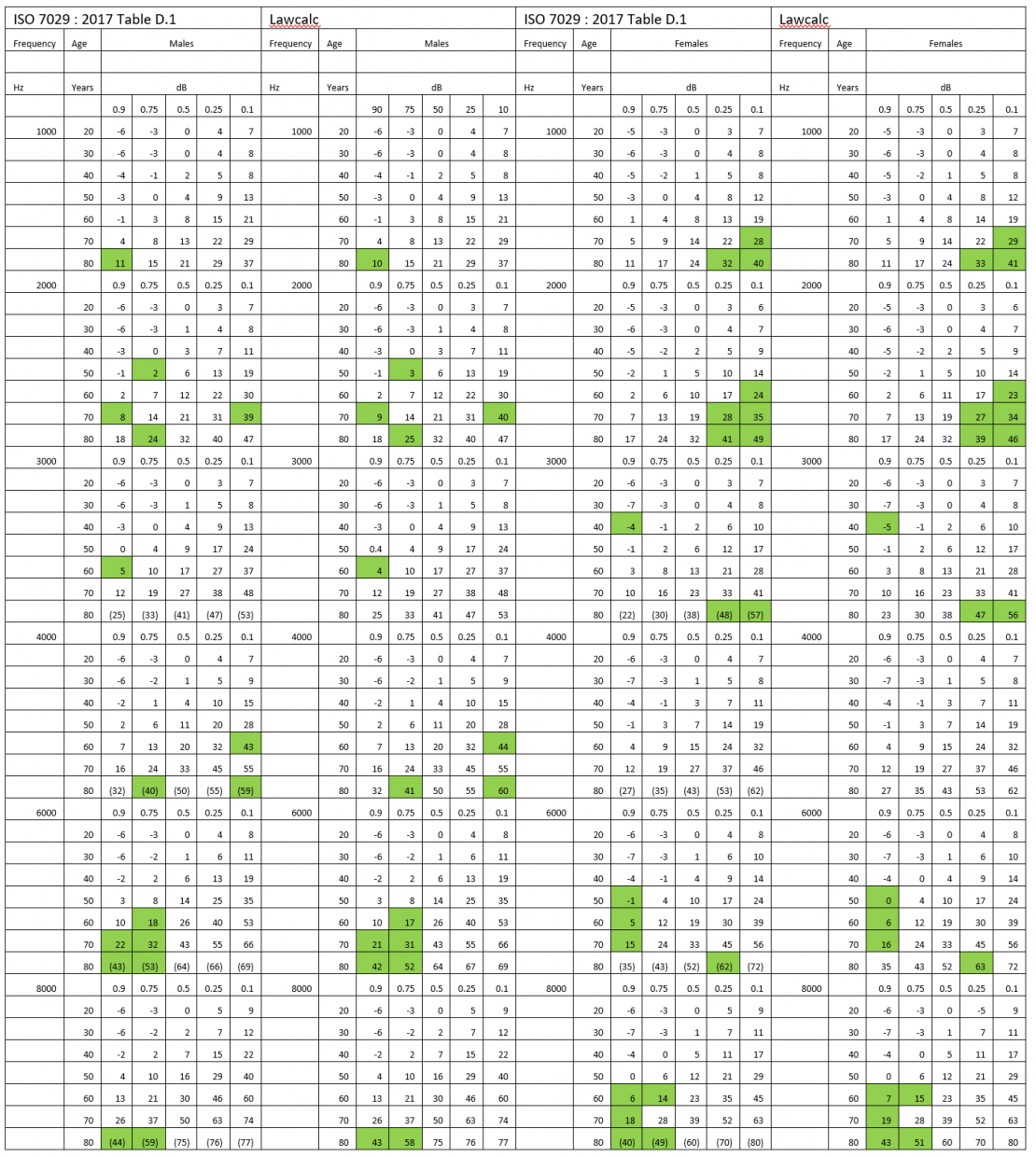

The calculator test results for the Male and the Female are provided below together with the values in Annex D Table D.1 ISO 7029 : 2017.

For Males and Females there are some differences between the calculator results and Table D.1 ISO 7029 : 2017.

The calculator formulae have been carefully checked and function as required by ISO 7029 : 2017.

It is known that others who have used the ISO 7029 : 2017 formulae have noted the same small differences between their results and Table D.1.

Conclusion

It was anticipated that there could be a difference of “1” between Table D1 and the calculator results at some points as it is not known how many decimal places were carried over into each calculation by the ISO technicians.

There are however one or two instances in which the calculator differs by more than “1.”  They are the Female results for an 80 year old at 2 kHz for the 25^th and 10^th percentiles and at 8kHz for the 90^th and 75^th percentiles.

The notes within ISO 7029 : 2017 indicate that the indicative hearing thresholds for an 80 year old are less certain than for younger persons.  For example the median curve for an 80 year old is presented for “informative purposes only” from 2 – 8 kHz in “Annex C Median values of expected hearing threshold deviations”.

Audiogram analysis for 80 years + is understood to be less capable of a precise result in any event – and comparatively rare.  However, this information is brought to users attention when considering audiograms for those aged 80 +
